Coverage

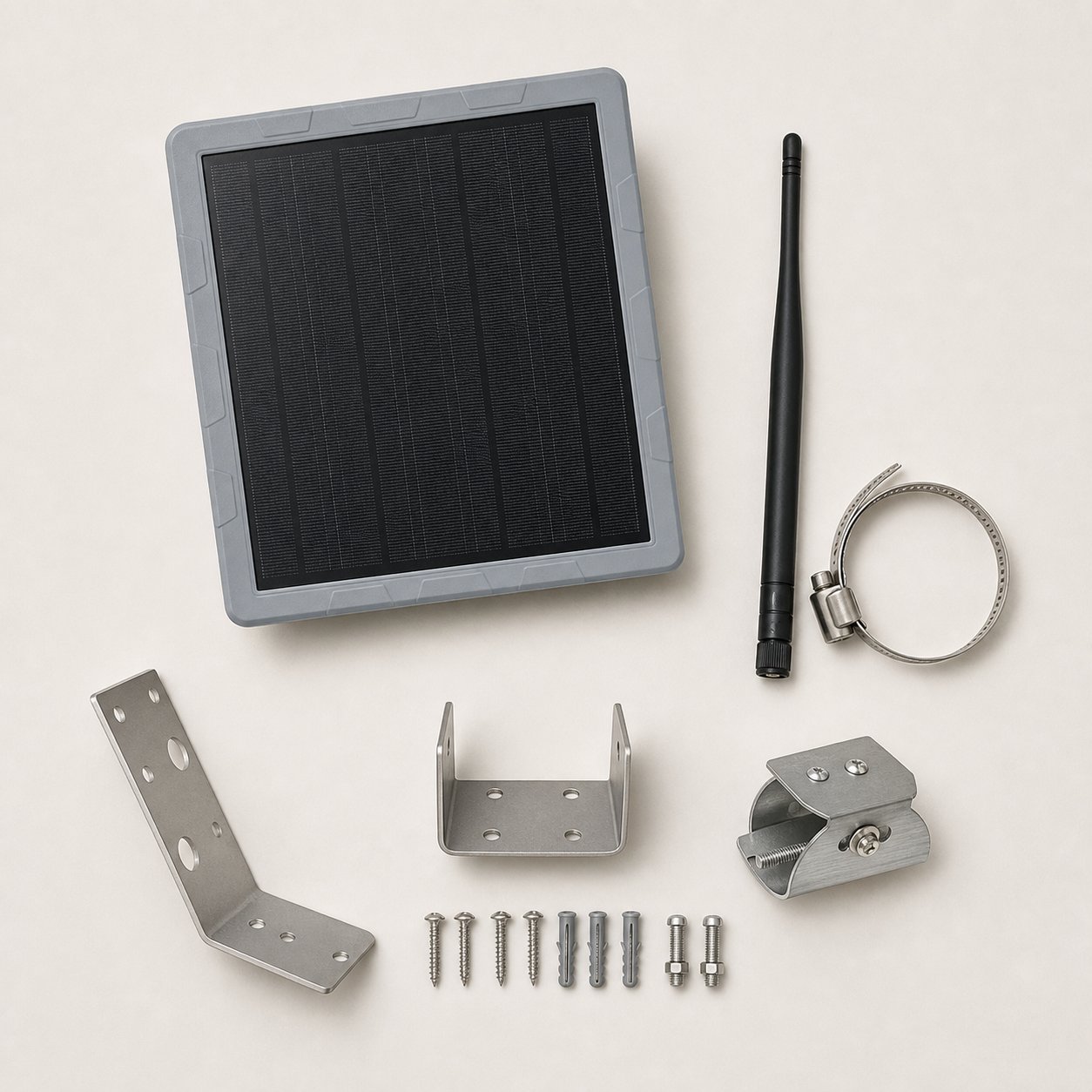

Solar Repeater
Solar repeater kit with antenna, stainless steel brackets, and hose clamp for pole-mounted coverage.
Solar-powered farm monitoring
Farm-Mesh™
Field sensors and repeaters form a low-power farm network for soil, tank level, and water pressure readings, then report back to the bridge node on the farmer's desk.
Irrigation data from the field to your phone.
Farm-Mesh brings irrigation data from the field to your mobile phone, so you stay informed even when you are not at the pump, tank, or crop row. It records the data as it comes in, making it easier to spot trends, pressure changes, dry-down patterns, and issues that may have happened overnight.
Stay informed off-field
Check soil, tank, and pressure readings without driving out to each monitoring point.
See trends and overnight issues
Recorded readings help show what changed while nobody was standing in the field.
Start small, no recurring fees
Begin with one field or water point, then grow the mesh without Farm-Mesh recurring fees.

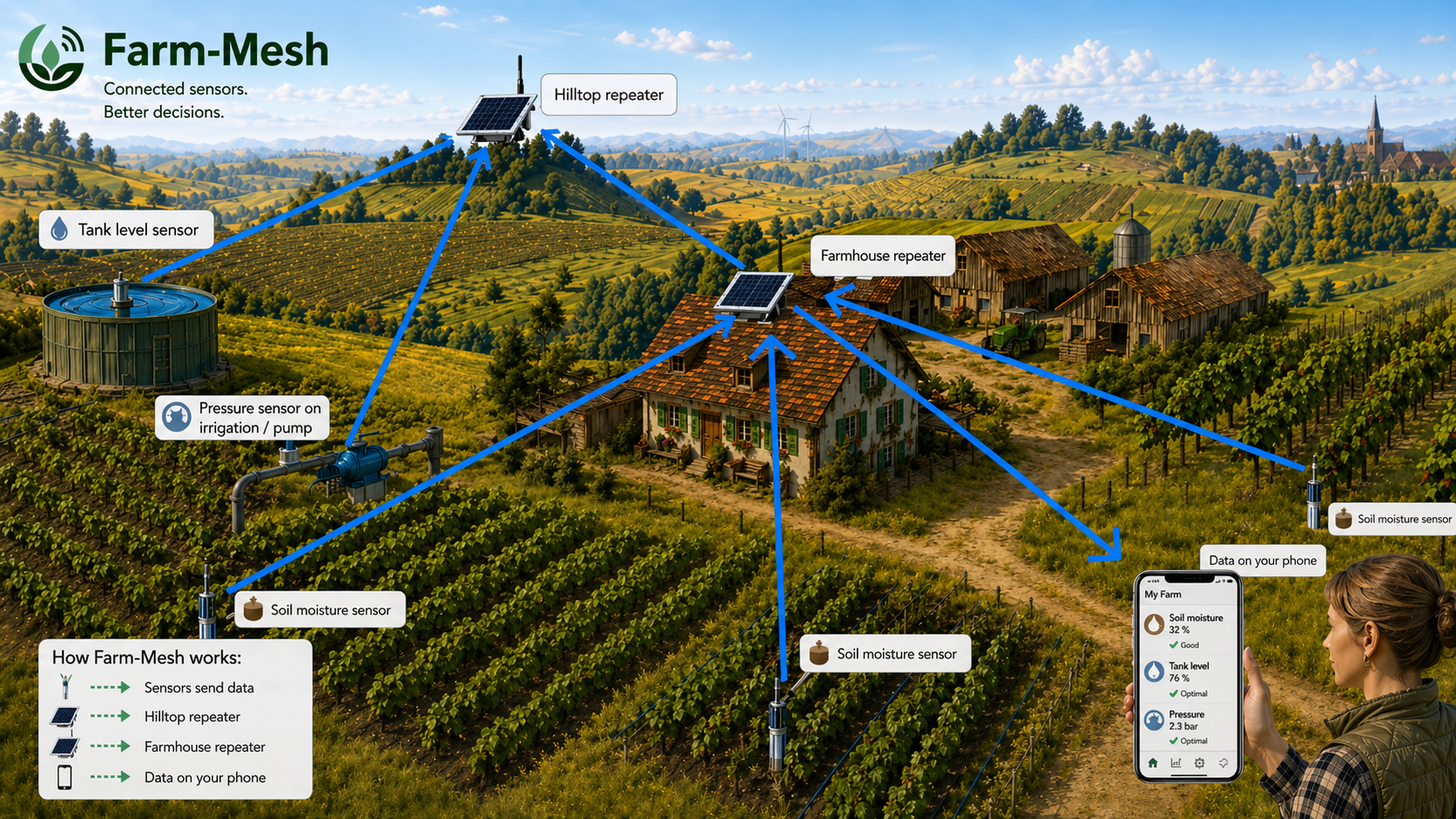

How it works
Sensor readings hop across the farm until they reach the bridge.
Farm-Mesh is built for practical rural coverage: place sensors where the work happens, add repeaters where the signal needs help, and collect the readings through the bridge node back at the farm desk.
01
Measure
Soil, level, and pressure nodes collect readings at the edge of the field.
02
Repeat
Repeater nodes extend the mesh when buildings, distance, or terrain get in the way.
03
Bridge
The desk bridge node gathers traffic and makes it available through the Farm-Mesh web experience.
Nodes and sensors for farm infrastructure.
Start small, then add repeaters and sensor nodes around tanks, lines, and soil blocks as the mesh grows.

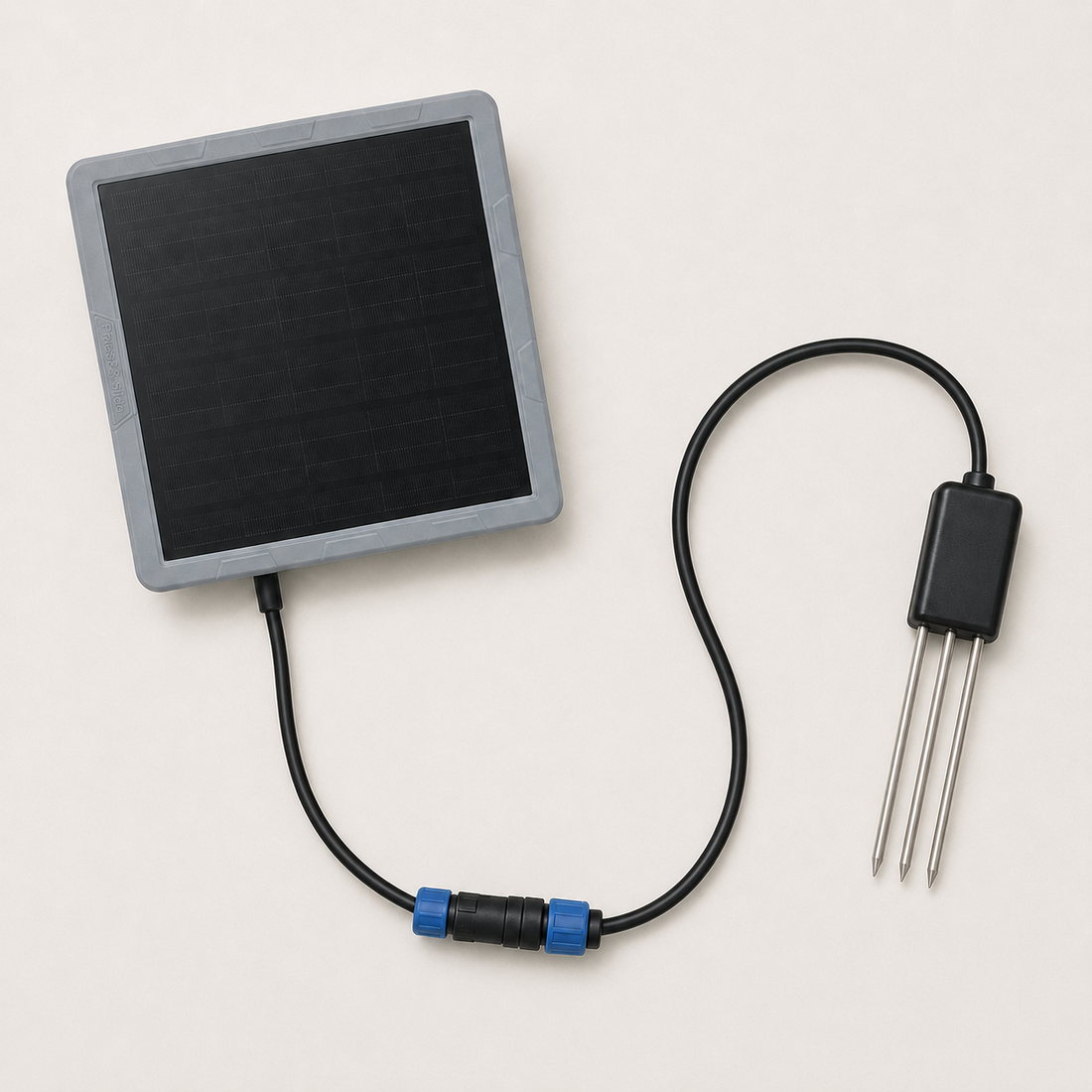

Soil
Solar Soil-Sensor
IP68 Solar Soil-Sensor measuring moisture, temperature, and salinity readings based on conductivity through a 2 meter probe cable.

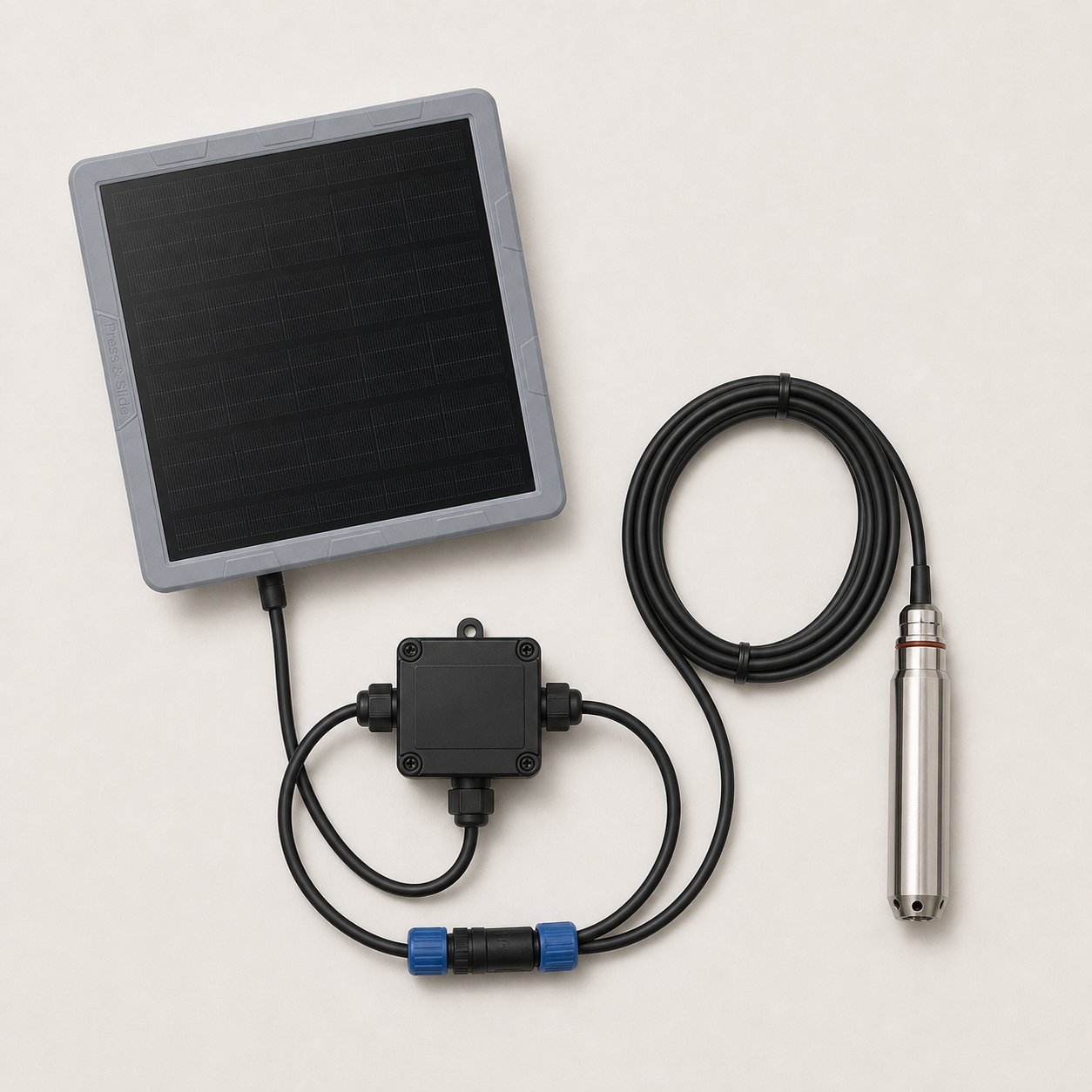

Tanks
Solar Level-Sensor
Level monitoring kit for tanks, troughs, and storage vessels with a rugged probe and field wiring.

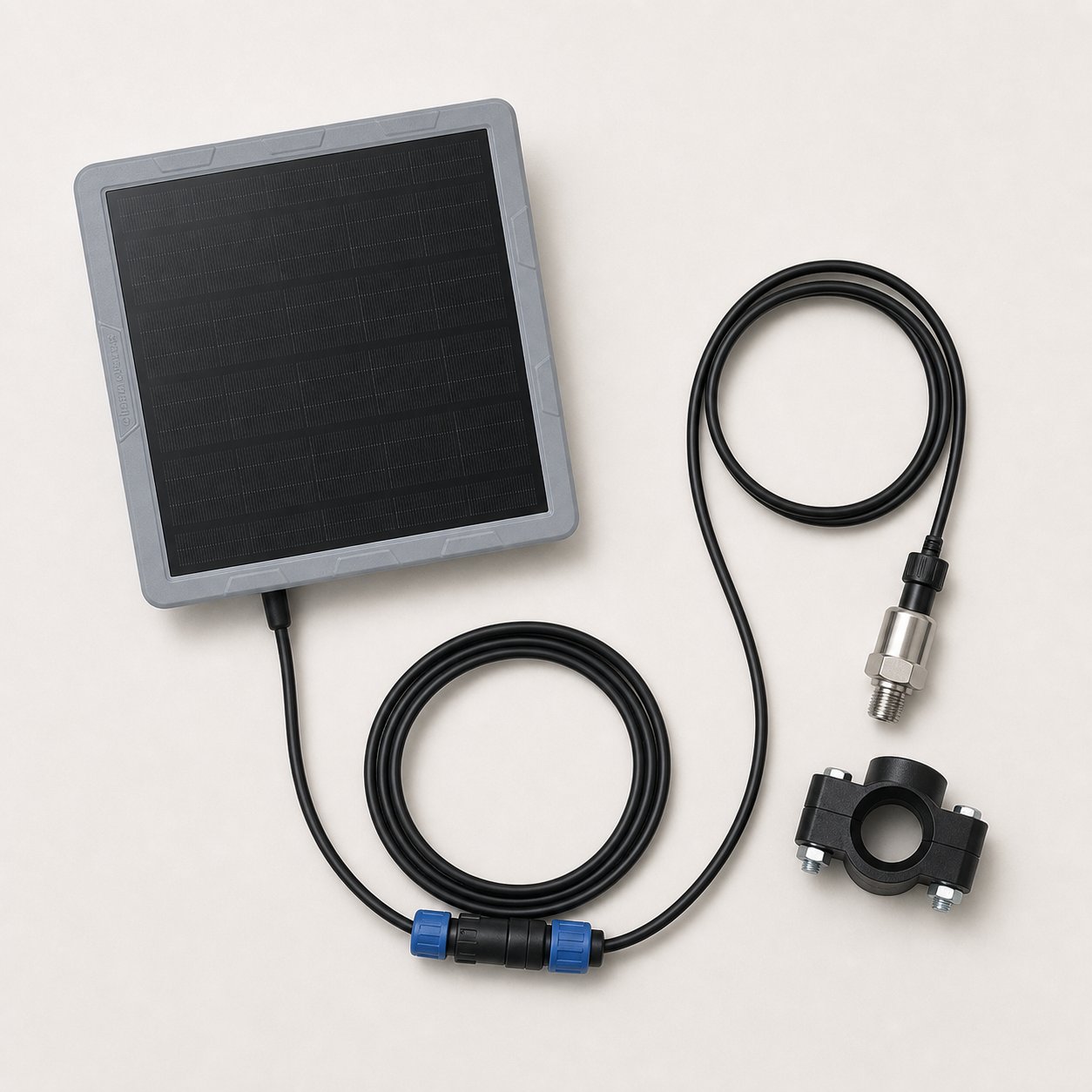

Water
Solar Pressure-Sensor
Pressure sensing hardware for lines and pumps, built to report readings back through the Farm-Mesh network.

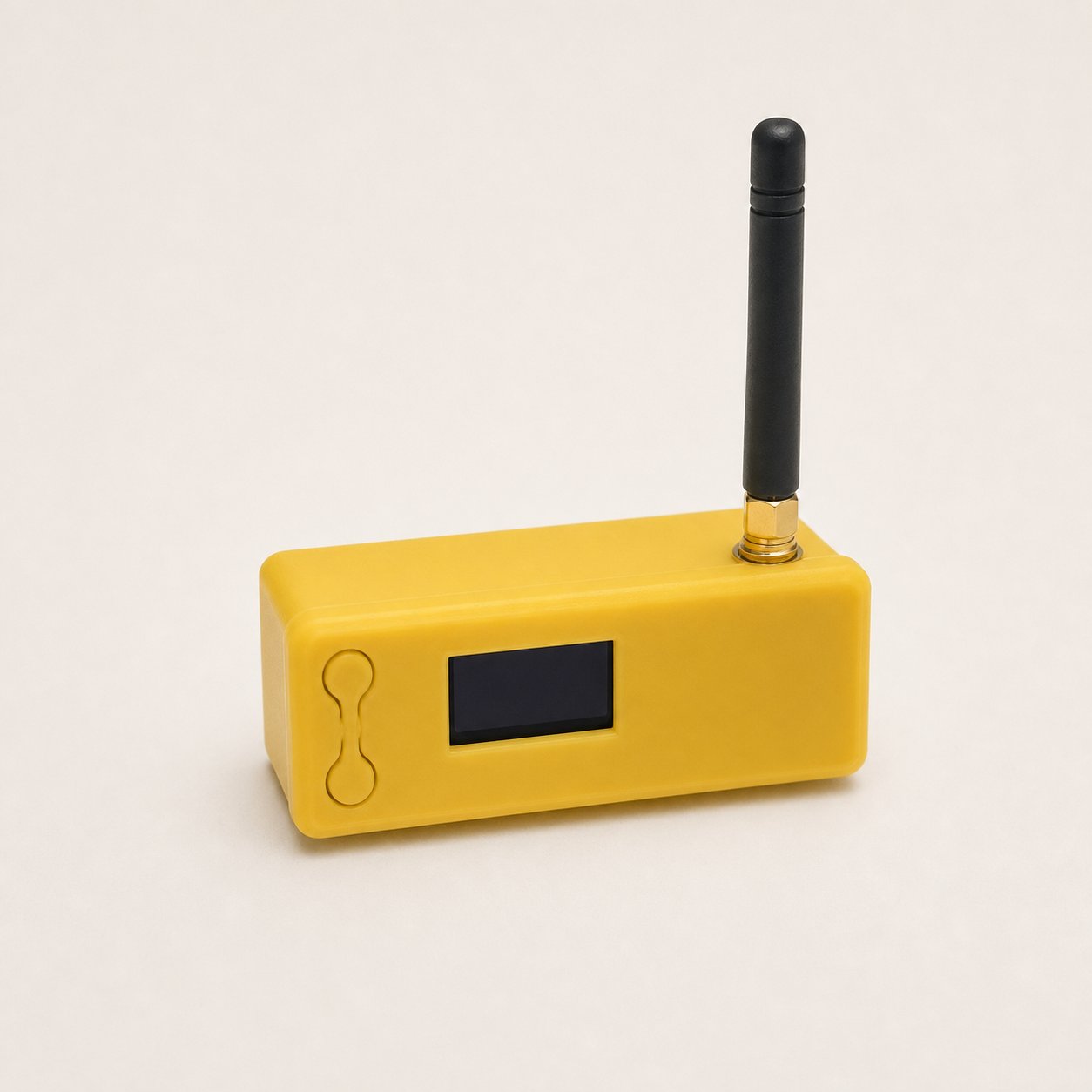

Gateway
Bridge Node
The yellow bridge node lives indoors on the farmer's desk, receiving mesh traffic and bringing sensor data into the Farm-Mesh web interface.
Technical specifications.
Built for permanent outdoor life: solar-powered, weatherproof, and reporting on their own long-range network.

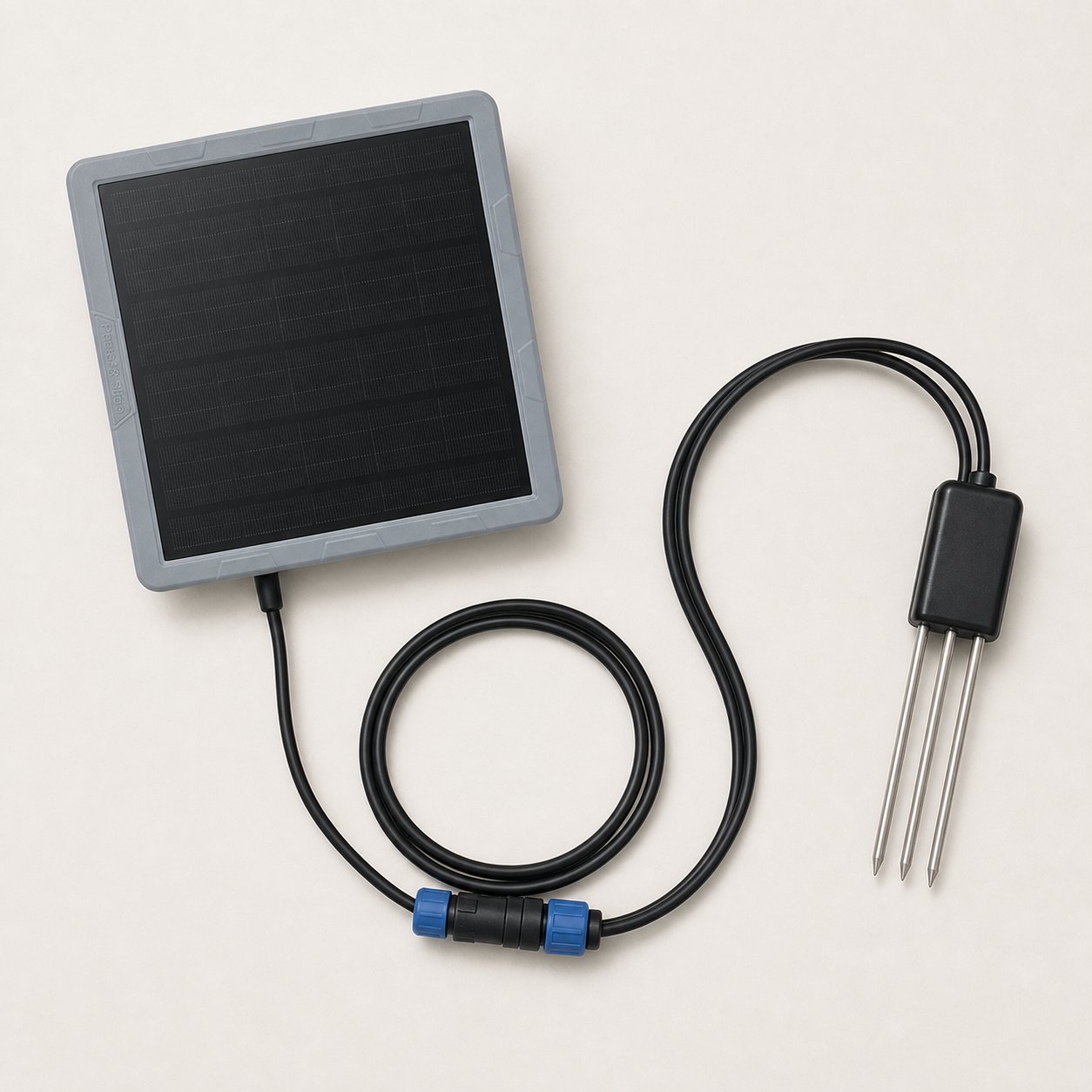

Solar Soil-Sensor
IP68 soil node measuring moisture, temperature and salinity from conductivity through a three-prong probe.
Measurement
- Soil moisture
- 0–100% saturation · ±2% (0–50%), ±3% (50–100%)
- Soil temperature
- −40 to +80 °C · ±0.5 °C
- Salinity (EC)
- 0–10 000 µs/cm · ±3%
- Reporting
- ~15 min, configurable
Hardware
- Probe
- Three-prong, anti-corrosion
- Probes per node
- Up to 4 (addresses 1–4)
- Cable length
- 2 m
- Ingress protection
- IP68
- Power
- Solar + rechargeable battery
- Weight
- 210 g
- Operating temp.
- −40 to +80 °C
Solar Level-Sensor
Continuous level for tanks, troughs and storage vessels, with the transmitter mounted clear of the water.
Measurement
- Measures
- Tank, trough & storage level
- Probe
- Submersible level probe
- Depth Level
- 0-2000mm
- Reporting
- ~15 min, configurable
Power & build
- Power
- Solar + rechargeable battery
- Enclosure
- Weatherproof, outdoor-rated
- Network
- Long-range mesh
- Field wiring
- Probe lead to transmitter

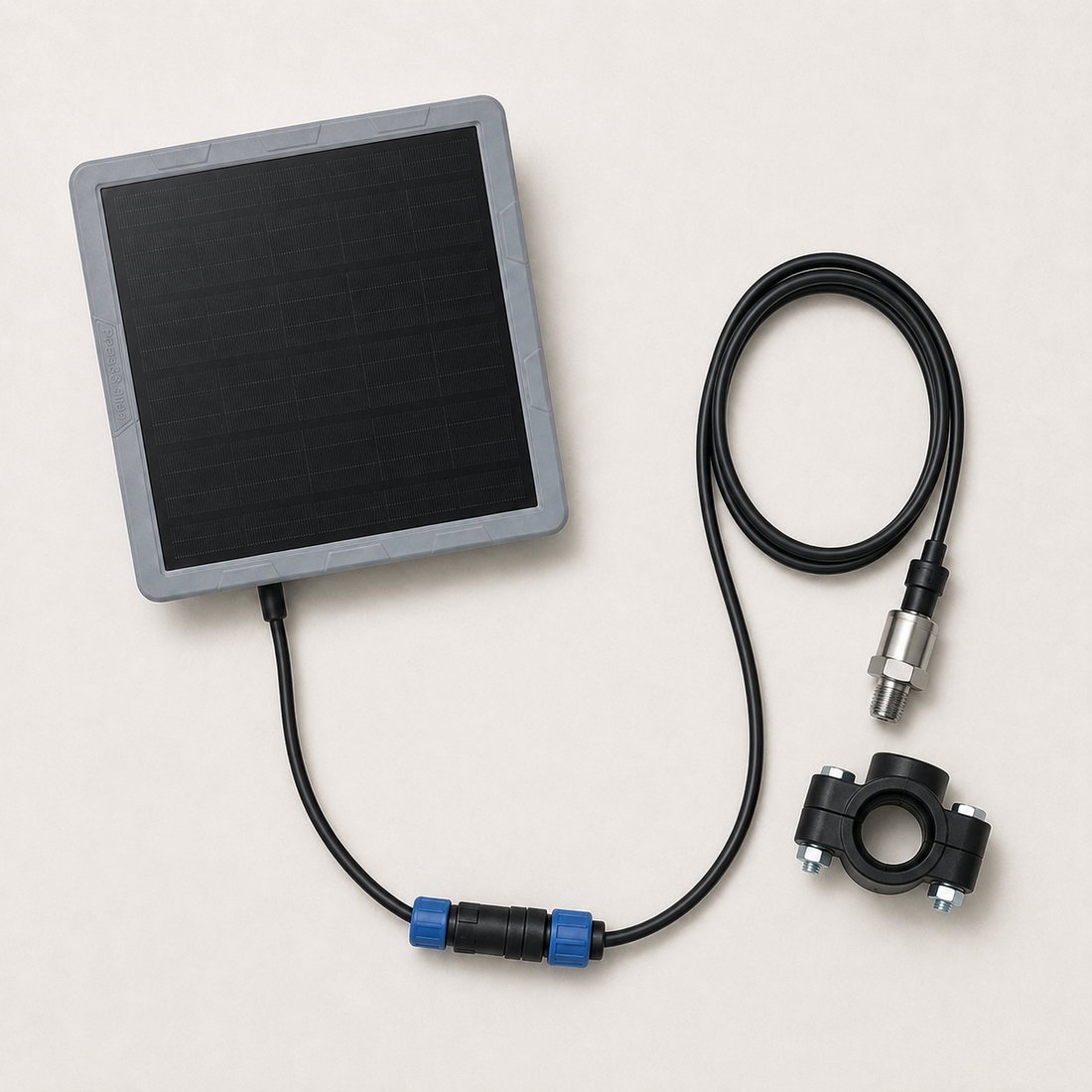

Solar Pressure-Sensor
Line and pump pressure so you can confirm the water is actually moving and holding.
Measurement
- Measures
- Line & pump pressure
- Fitting
- Threaded pressure probe
- Typical use
- Irrigation lines, pumps, mains
- Reporting
- ~15 min, configurable
Power & build
- Power
- Solar + rechargeable battery
- Mounting
- Clamp mount on pipework
- Manual gauge
- Optional fallback gauge supported
- Network
- Long-range mesh
Solar Repeater
Pole-mounted relay that carries readings past hills, sheds and tree lines to the far paddock.
Coverage
- Role
- Extends mesh coverage
- Network
- Long-range mesh, multi-hop
- Band
- Regional sub-GHz ISM
- Antenna
- External
Power & build
- Power
- Solar panel + battery backup
- Mounting
- Pole mount, stainless brackets + clamp
- Enclosure
- Weatherproof, outdoor-rated
- Wiring
- None — fully wireless
Yellow WiFi Bridge
The one indoor device that gathers every reading and brings it to your phone, dashboard and Home Assistant.
Connectivity
- Receives
- All sensor & repeater traffic
- Internet
- Your WiFi or router — the only device that needs it
- Integrations
- Home Assistant (auto-discovery), MQTT
- Dashboard
- Built-in web interface
Build & power
- Location
- Indoor / desk
- Power
- USB
- Setup
- Bluetooth pairing via the free app
- Apps
- Android & iOS
Clear installs for common farm jobs.

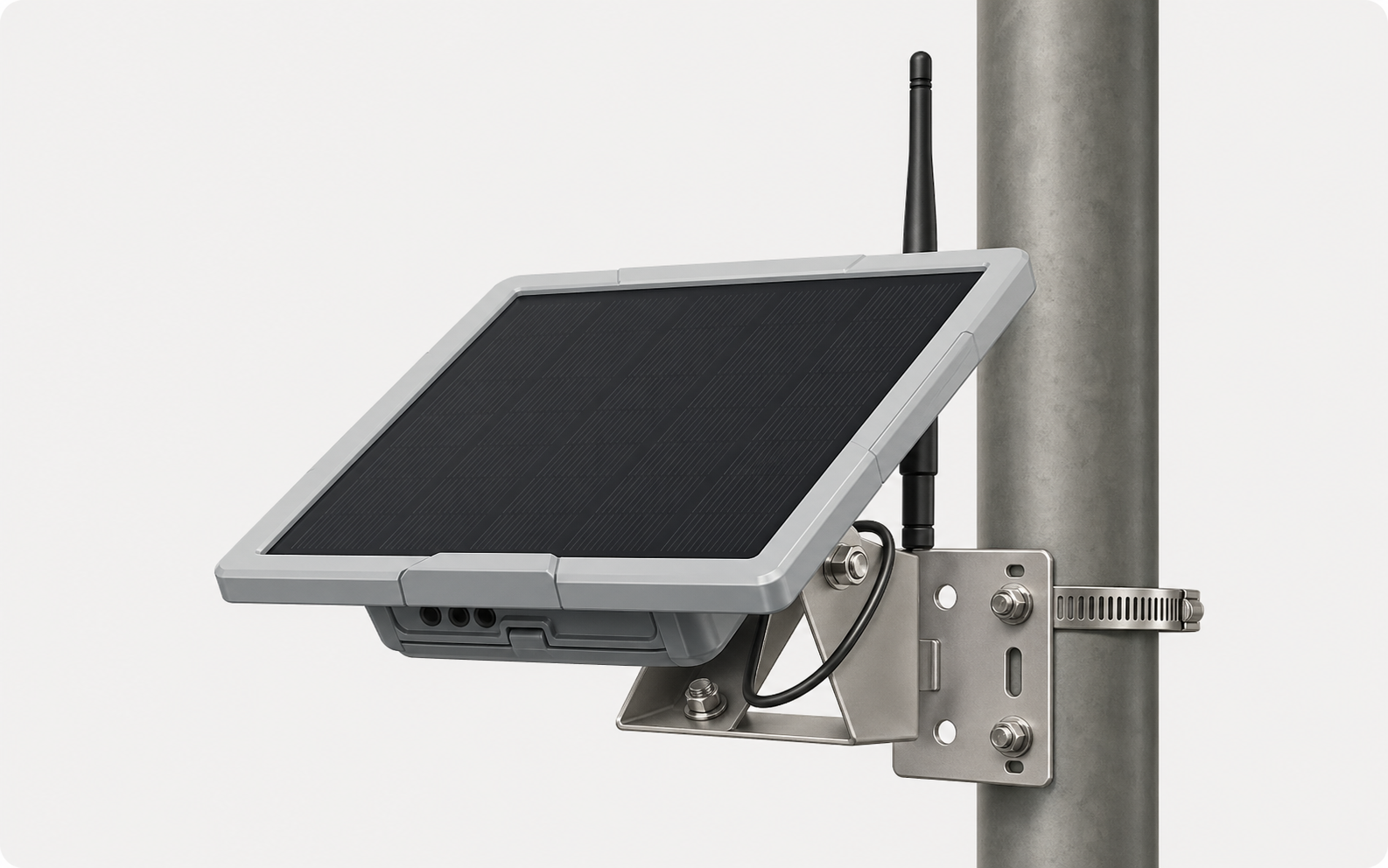

Pole-mounted repeater
The solar repeater mounts to a pole with the supplied stainless brackets and clamp, keeping the panel, antenna, and radio above obstructions.

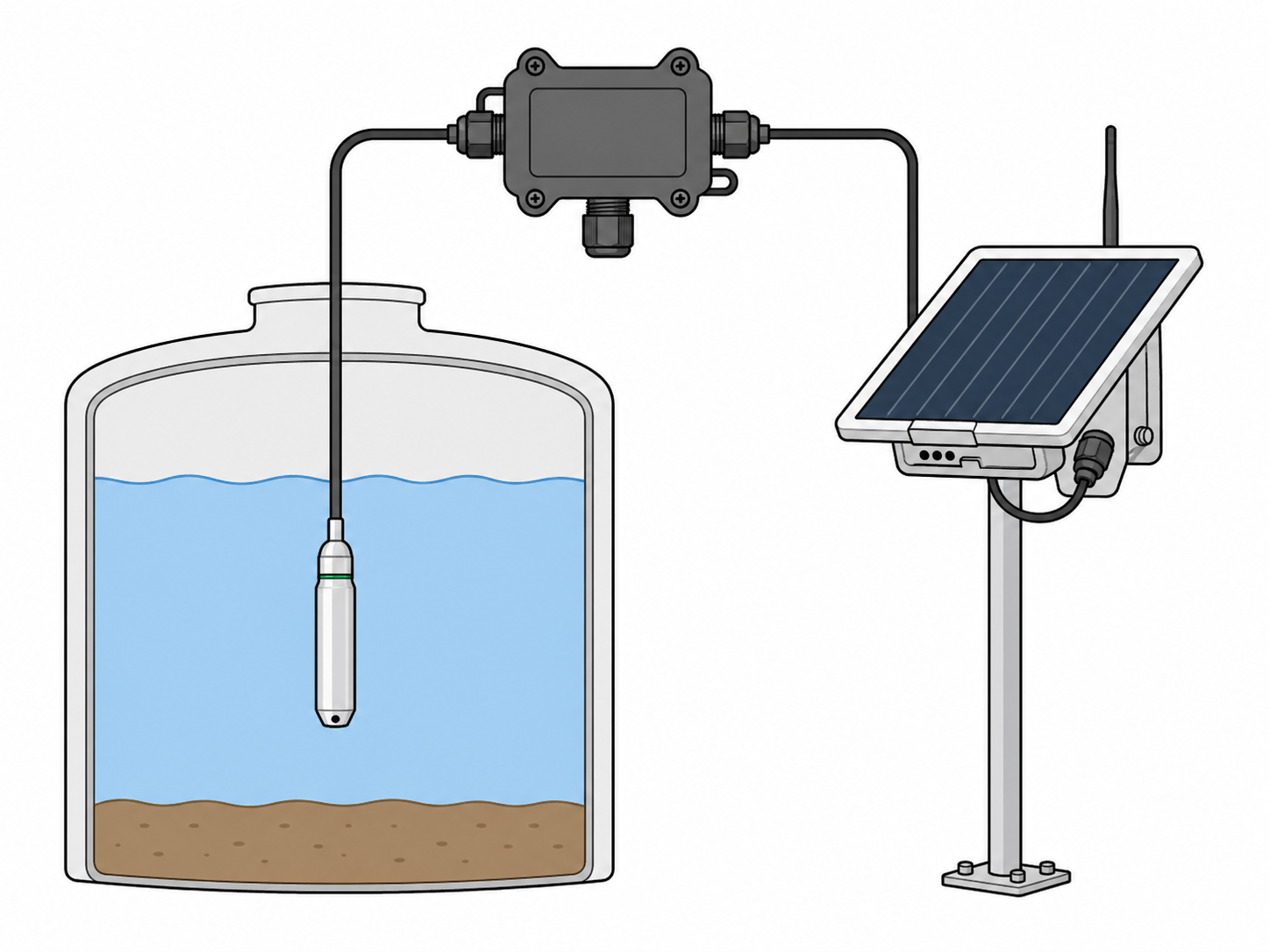

Tank level monitoring
A level probe drops into the tank, the node stays mounted above the waterline, and a solar panel keeps the site reporting.

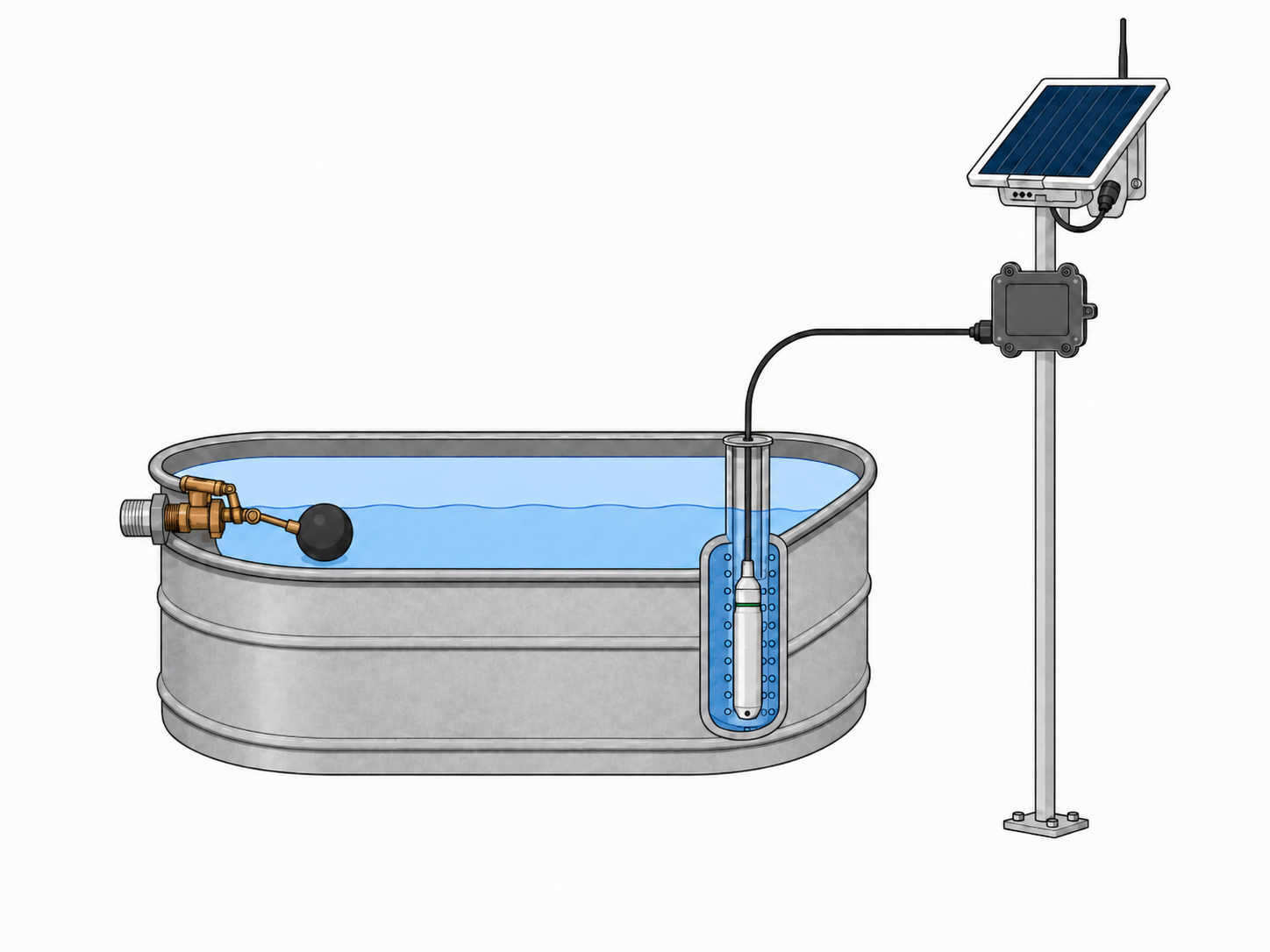

Solar-powered livestock water monitoring system
A level probe watches the trough water, while the solar node on the post keeps readings moving through the Farm-Mesh network.

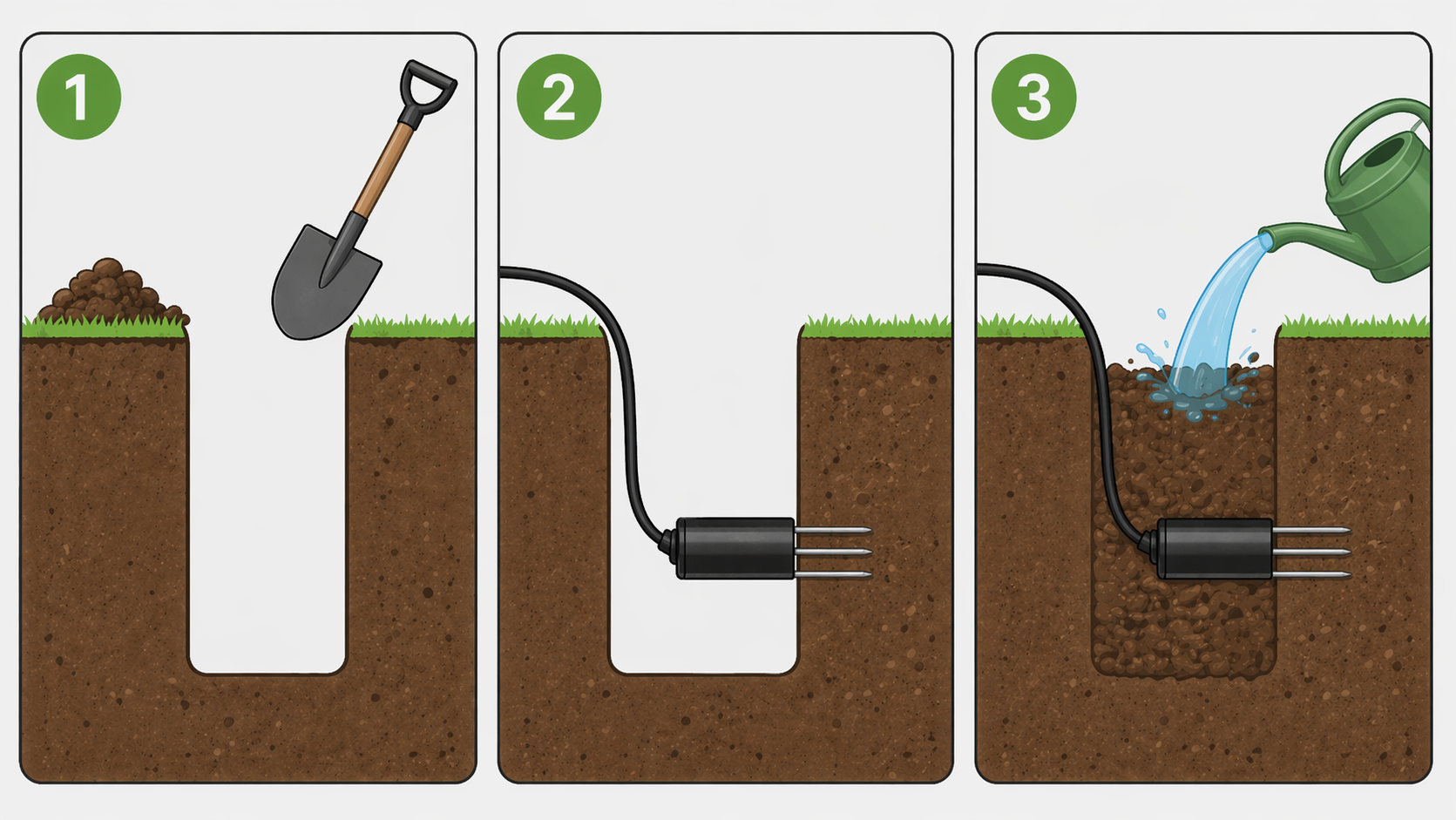

Soil-probe placement
Prepare the soil pocket, place the three-prong probe, then water the backfill so the sensor reads the surrounding soil consistently.

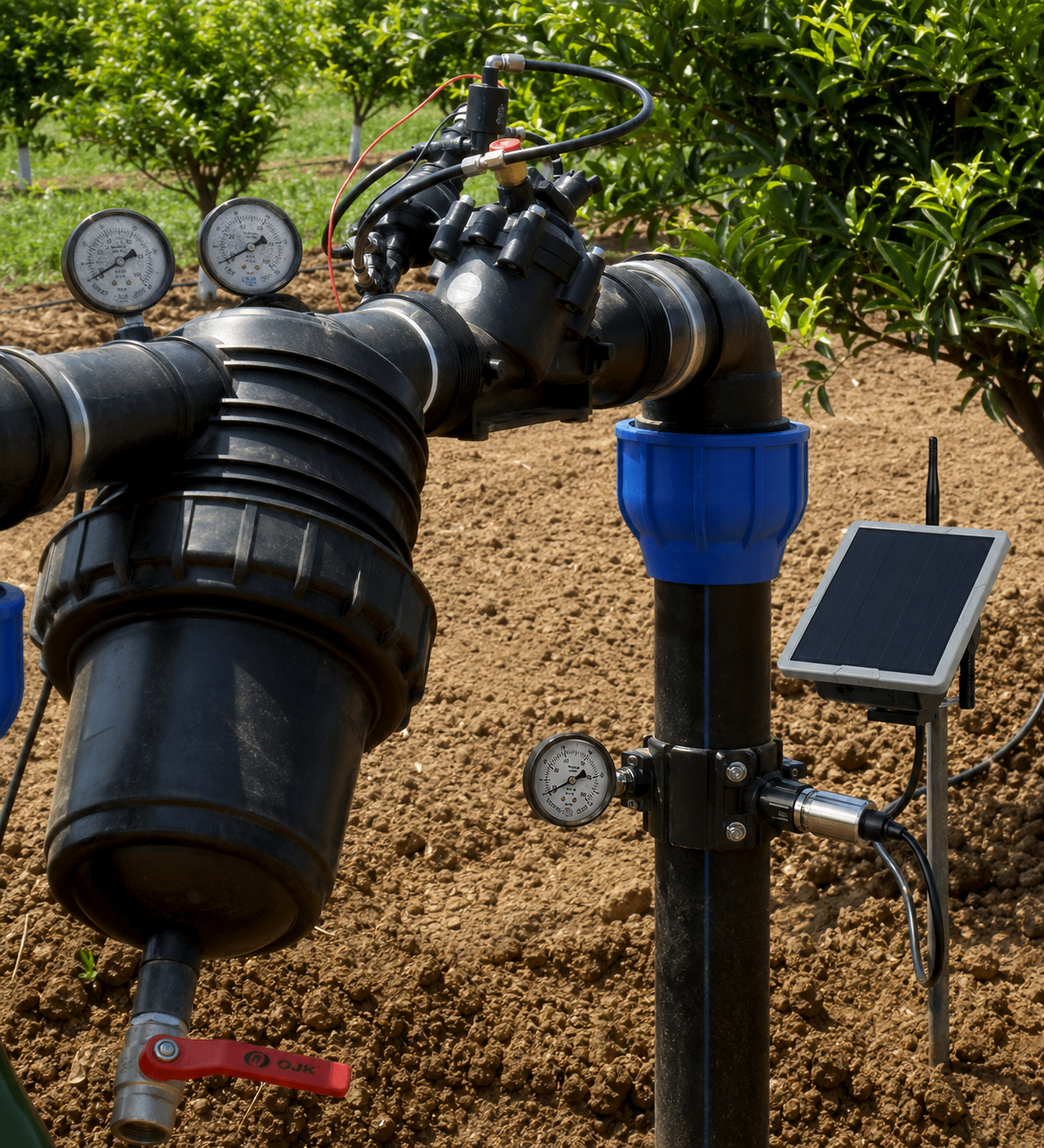

Water pressure monitoring
A double clamp keeps the manual gauge on one side for fallback readings, with the pressure probe opposite and cabled to the solar transmitter.
Build the first coverage plan around your fields.
Tell us what you want to monitor and where your dead spots are. We can help shape the coverage plan, repeater placement, and the next sensor nodes.
